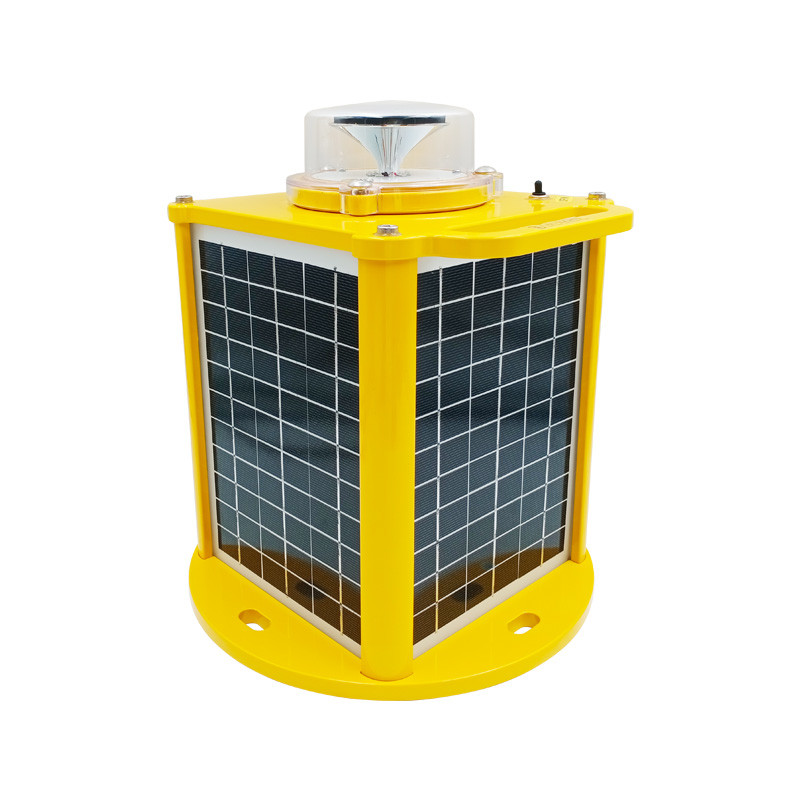

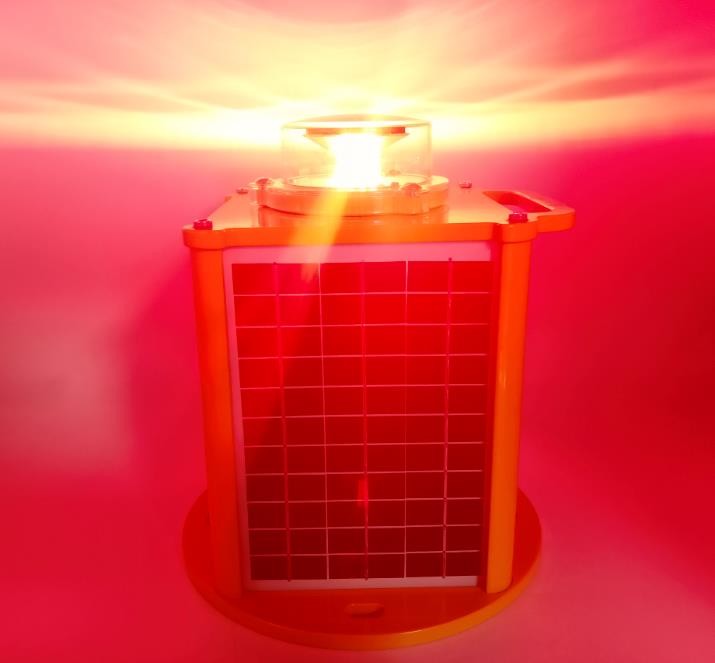

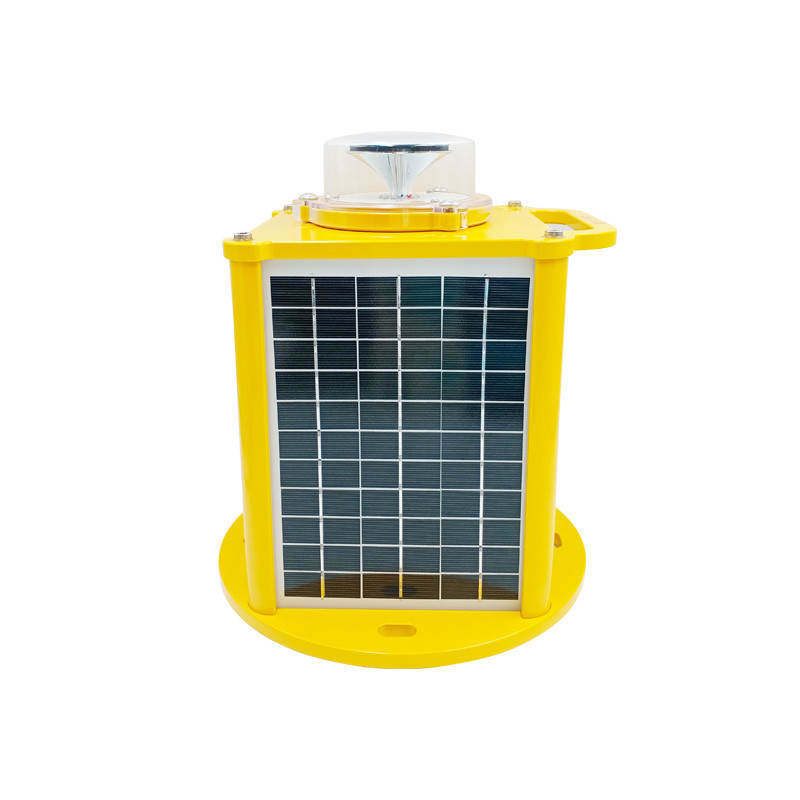

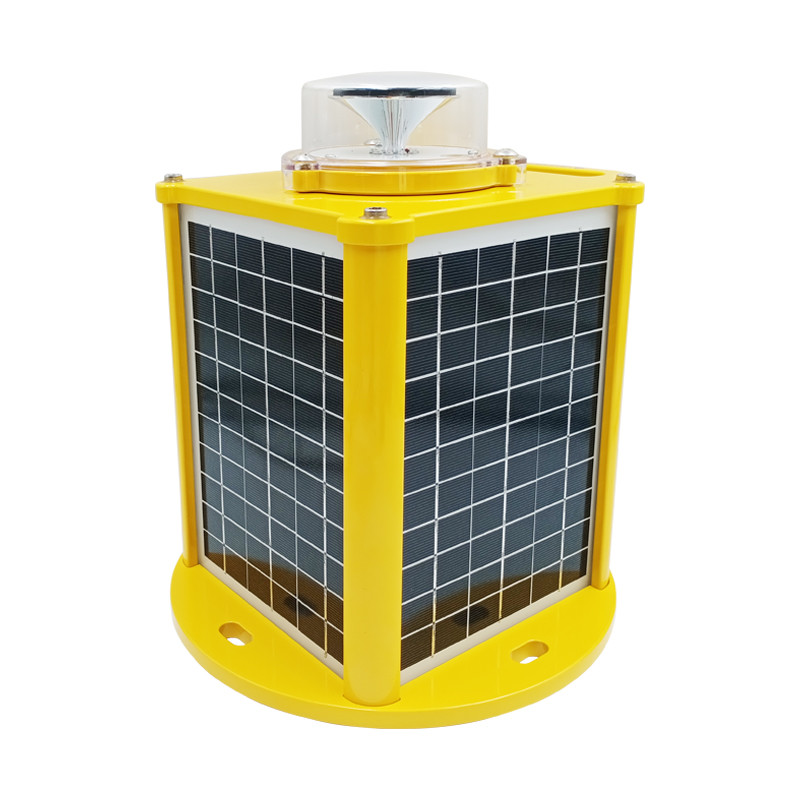

GS-LS/I IP67 High Power Led Aircraft Lamps System

Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-LS/I
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
Model No. IP67 High Power Led Aircraft Lamps System Light Source Service Life >100000 Hours
Power Supply Mono Crystalline Silicon Solar Panel Emitting Color Red
Battery Capacity 12V14AH Battery Type Lead-acid Battery
Solar Panel Power 6Wx4 Battery Life >3years
High Light

GS-LS/I solar aviation light

,

IP67 solar aviation light

,

5km Solar aviation light

Leave a Message
Product Description

IP67 High Power Led Aircraft Lamps System





Specification
Model No.: GS-LS/I Light Source Service Life: >100000 hours
Power Supply: Mono crystalline silicon solar panel Emitting Color: Red
Battery capacity: 12V14AH Battery Type: Lead-acid battery
Solar panel power: 6Wx4 Battery life: >3years
Solar panel voltage: 5.5V Solar panel life: >20years
Instantaneous power: ≤3W Vertical divergence: >10°
Visual range: 5km Horizontal Out-put: 360°
Light source: LED Overall Size: 260mm(D)x370mm(H)
Storage temperature: -40℃~70℃ Installation Size: D220mmxM8
Working Temperature: -20℃~60℃ Anti-wind Ability: 80m/s
steady light intensity: 20CD flashing light intensity: >32.5CD
Weight: 7kg Working mode: Flashing/steady burning
Continuous working time in rainy day: > 15days( work 12 hours a day) Optically Controlled Ambient Brightness: 300LUX±100LUX
IP Standard: IP67


Function & Features
1. Continuous working time in rainy day can reach more than 15 days (12 hours a day) .
2. Photocell can switch ON/OFF the light in rainy days or at night automatically.
3. Standardization of optical design, high photoelectric conversion efficiency.
4. Adopts high efficient solar chip, photoelectric conversion efficiency is over 19%.
5. The integration of the waterproof design, it can work in soaking in sea water,high protection grade IP67.
6. Adopts special customized LED chip, transfer efficiency and service life is higher than normal LED.
7. Circuit adopts advanced charging and discharging management system,prolong battery’s life effectively.
8. Provides strong corrosion resistance, lightning resistance,UV resistance, impact resistance.
9. No radio frequency (rf), no electromagnetic interference.
10. Steady working, low cost.
11. Internal use renewable solar dedicated lead-acid battery, service life can reach more than 3 years.
12. Can customize lithium iron phosphate battery to improve service life and working temperature range.

Usage notice
1. Please read the instruction carefully and then use the device correctly.
2. Solar powered marine lantern must be installed in a sunny place to keep it working continuously.
3. Please install this light on the Installation plane that perpendicular to light axis, installation plane should has mechanical strength.
4. If the device fails to work at the first using time, please place the device under sunlight to recharge power 12hours, it will work.
5. Please turn off the device and put it in a dry place, to ensure the life of the battery.please put it in a sunlight for 5day(s) to recharge power each 3 months if it needs to be stored for a long time.
6. If there any other problem please contact us.

Application
Block
Bridge
Towers
Communication tower
Chimney
Airport runway
Taxiway
Temporary military airport
Runway edge lights
Navigation beacon light
Heliport
Traffic barrier
Tower cranes

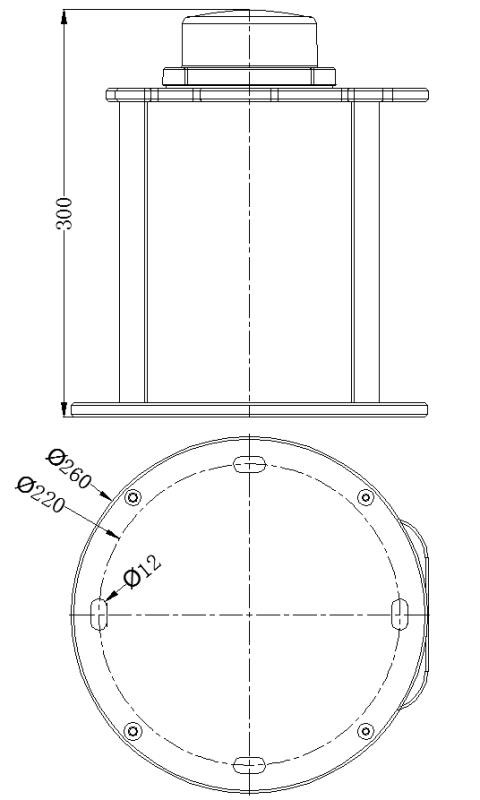

Dimension drawing

GS-LS/I IP67 High Power Led Aircraft Lamps System 0
