AC85V to AC265V White Color 20W Helipad Flashing Beacon Light

Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-HP/B
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
Type Helipad Flashing Beacon Light Power Supply Frequency 50HZ~60HZ
Power Voltage Optional AC180V~ AC264V Flash Rate Flashing 4 Times/2S
Average Power Consumption ≤20W Service Life Of The Light Source ≥10years
Emitting Color White Overall Size(mm) 55mm×255mm×210mm
High Light

20W flashing beacon light


AC180V flashing beacon light


AC264V flashing beacon light

Leave a Message
Product Description

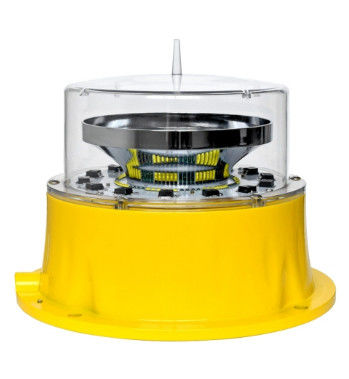

Helipad Flashing Beacon Light


Type: GS-HP/B
Power Supply Frequency: 50HZ~60HZ
Power voltage Optional: AC85V~ AC265V
Flash rate: Flashing 4 times/2S
Average power consumption: ≤20W
Service Life of the Light Source: ≥10years
Emitting Color: White
Overall Size(mm): 255mm×255mm×210mm
Installation Size(mm): Φ234mm x M8
IP Protection: IP68
Ambient Temperature: -50℃~65℃
Net Weight: 4.8kg
Anti-Wind Ability: 80m/s

Function & Features

  1.  The shell adopts high intensity aviation aluminum to cast, with full-seal structure.
  2.  With CREE chip, which has the specific of high light intensity, low power consumption,long service life.
  3.  Independent designed patent condensing lens, the field angle follow the standard of FAA,ICAO.
  4.  Lamp shade adopts tempered PC material,which has strong ability of corrosion,anti-UV, anti-shock.
  5.  With anti-surge protection device,it can adapt to extremely bad working environment.
  6.  Adopts advanced technology of stoving varnish, which provide excellent heating dispersion, it can reduce the volume and weight of the light.
  7.  Offer anti-shock,lighting protection,light fastness, rain and snow resistance function.
  8.  With over-current protection function.

Usage notice

  1.  Don't use any out of nominal voltage,or will destroy equipment.
  2.  Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
  3.  After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
  4.  Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.

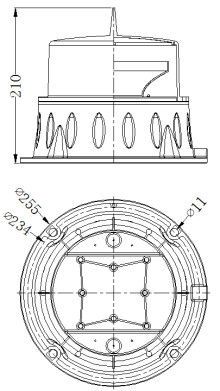

Dimension drawing
AC85V to AC265V White Color 20W Helipad Flashing Beacon Light 0
