2W 4.2V IP68 Portable Airport LED Runway Lamps Helicopter
Overall Size(mm) | 125x150mm | Service Life Of The Light Source | ≥20 Years |
---|---|---|---|
Light Source | LED | Working Mode | Steady Burning |
Power Consumption | ≤2W | Power Supply Frequency | 50HZ~60HZ |
Power Voltage | 4.2V | Model | Helicopter Pad Lights |
High Light | 2W LED Runway Lamps,Portable Airport LED Runway Lamps,Helicopter LED Airfield Lamp |
2W 4.2V 4.2KG IP68 Portable Airport Lighting Equipment

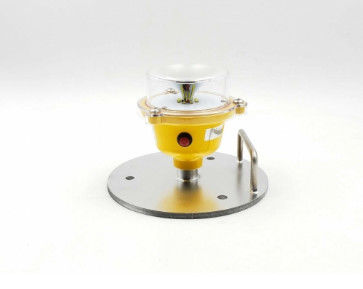

GS-HP/EBX Portable Heliport Light, which base is made of 304 stainless steel.
Light source adopt with independent research and development dedicated LED chip, which has the characteristics of high brightness, low energy consumption, long service life, etc.
The lampshade adopts PC material, which can corrosion resistance, anti-UV, anti-shock and so on.
This product is used for illuminating the landing site when helicopters land at night.
So that the pilot can observe the relative position of the aircraft and the runway as well as flying height clearly, to ensure the safe landing of the aircraft.
Specification
Name | Parameter |
Model | GS-HP/EBX |
Power voltage | 4.2V |
Power Supply Frequency | 50HZ~60HZ |
Power Consumption | ≤2W |
Working mode | Steady Burning |
Light Source | LED |
Service Life of the Light Source | ≥20 years |
Optional Emitting Light Colors | Red, Green, Yellow, Blue, White |
Overall Size(mm) | 125mmx 150mm |
Ambient Temperature | -40℃~60℃ |
Weight | 4.2KG |
IP Protection | IP68 |
Light Controlled Ambient Brightness | 50/100Lux |
Battery | LiFePO4 battery |
Battery capacity | 3.2V3AH |
Function & Features
- Adopts Fresnel lens PC lamp shade, converging angle meets FAA standard.
- With automatically light control function that can change to working mode at rainy day and night.
- LED light source, its service life can up to 100000 hours.
- Low voltage design, high safety degree for using.
- With the impact resistance, anti lightning, resistant to sunlight, anti snow, can resist typhoons, hail and other severe weather.
- With over current protection function.
- With anti-lightning protection.
Usage notice
- Don't use any out of nominal voltage,or will destroy equipment.
- Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
- Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.
Application
Airport
Heliport
Helipad
