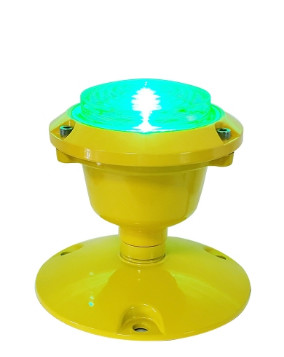

DC24V Green / Yellow / Amber 25cd 3W Heliport Perimeter Light

Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-HP/E
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
Overall Size 165mm×165mm×150mm Emitting Color Optional Colors Green/Yellow/amber
Light Source Service Life ≥20 Years Intensity ≥25cd
Working Mode Steady Burning Average Power Consumption ≤3W
Supply Frequency 50HZ~60HZ Type Heliport Perimeter Light
High Light

25cd heliport perimeter light


3W heliport perimeter light


DC24V heliport perimeter light

Leave a Message
Product Description

DC24V Green / Yellow / Amber 25cd 3W Heliport Perimeter Light


Type: GS-HP/E
Power Supply Optional voltage: AC220V,AC120V,DC24V
Supply Frequency: 50HZ~60HZ
Average Power Consumption: ≤3W
Working Mode: Steady burning
Intensity: ≥25cd
Light Source Service life: ≥20 years
Emitting Color Optional colors: Green/Yellow/amber
Overall Size: 165mm×165mm×150mm
Installation Size: ¢145mm×M10(3 holes)
IP Protection: IP65
Ambient Temperature: -20℃~60℃
Weight: 1.8kg
Humidity: <95%
Altitude: <4500M

Function & Features

  1. Independent designed tempered glass lens, irritation angle follow the standard of ICAO.
  2. With work stability, strong anti-interference ability and shock resistance.
  3. Full sealed structure base, with superior waterproof performance.
  4. With the anti-surge protection device.
  5. Professional custom LED chips, with high light brightness and long service life.
  6. Transformer isolation step-down, all electrical work in low voltage circuit can save the service life of light source.
  7. Easy to fold design, can reduce the secondary damage to helicopters effectively.
  8. Arc adjustable design in chassis mounting holes, easy to install.
  9. Tempered glass material lens, provides corrosion resistance and UV protection.

Usage notice

  1. Don't use any out of nominal voltage,or will destroy equipment.
  2. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
  3. After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
  4. Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.


Dimension drawing

DC24V Green / Yellow / Amber 25cd 3W Heliport Perimeter Light 0
