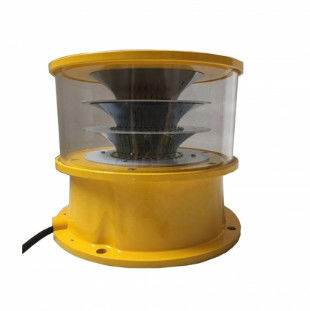

AC85V-270V 30W Three Colors Heliport Airport Beacon Light

  • AC85V-270V 30W Three Colors Heliport Airport Beacon Light
  • AC85V-270V 30W Three Colors Heliport Airport Beacon Light
  • AC85V-270V 30W Three Colors Heliport Airport Beacon Light
  • AC85V-270V 30W Three Colors Heliport Airport Beacon Light
  • AC85V-270V 30W Three Colors Heliport Airport Beacon Light
  • AC85V-270V 30W Three Colors Heliport Airport Beacon Light
Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-HP/BS
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
Lighting Source LED Altitude ≤4500m
Ambient Humidity ≤95% Ambient Temperature -50℃～85℃
Power Consumption <30W Optional Supply Voltage AC85V~265V,DC12V
Model AC85V-270V 30W Three Colors Heliport Airport Beacon Light
High Light

AC85V heliport beacon light

,

30W heliport beacon light

,

4500m heliport beacon light
Leave a Message
Product Description

AC85V-270V 30W Three Colors Heliport Airport Beacon Light



Specification

Model: GS-HP/BS
Optional Supply Voltage: AC85V~265V,DC12V
Power Consumption: <30W
Ambient Temperature: -50℃～85℃
Ambient Humidity: ≤95%
Altitude: ≤4500m
IP Protection: IP 66
Lighting Source: LED
Product Size: 255mm×255mm×205mm
Installation Size: φ234×4×M8
Working Mode: Flashing
Emitting Color: White,Green,Yellow
Weight: 7KG


Function & Features

  1. The enclosure is made of high strength aviation aluminum and is fully sealed.
  2. High quality LED chips, with high brightness, low energy consumption, long life and other characteristics.
  3. Independently developed advanced optical system, the focus Angle meets FAA and ICAO requirements.
  4. With surge protection device, suitable for harsh working environment.
  5. Advanced high heat conduction paint technology, with excellent heat dissipation, can effectively reduce the volume and weight of lamps.
  6. With shock resistance, lightning protection, sun resistance, rain and snow resistance, can resist the typhoon, hail and other bad weather attack.
  7. With overcurrent protection function.
  8. Military grade circuit design, can be applied to a variety of radar and radiation interference environment.


Usage notice

  1. Don't use any out of nominal voltage,or will destroy equipment.
  2. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
  3. After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
  4. Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.


Application
Airport
Heliport
Helipad

Dimension drawing
AC85V-270V 30W Three Colors Heliport Airport Beacon Light 0
