10nm IR Programble Marine Navigation Lighting For Buoy
Product Details
| Name | 6-10nm Solar Powered Marine Navigation Lighting | Horizontal Out-put | 360° |
|---|---|---|---|
| Vertical Divergence | ＞8° | Battery Type | Lead Acid Battery Lithium Iron Phosphate Battery |
| Solar Panel Power | 6W X 4pcs | Optional Emitting Color | Red, Yellow, Green, Blue, White |
| LED Service Life | ＞100000 Hours | Type | Remote Monitoring IP68 6NM Solar Powered Marine Lights |
| High Light | IR Programble Marine Navigation Lighting,10nm Marine Navigation Lighting,Buoy Solar Marine Seaway Lights |
||
Product Description

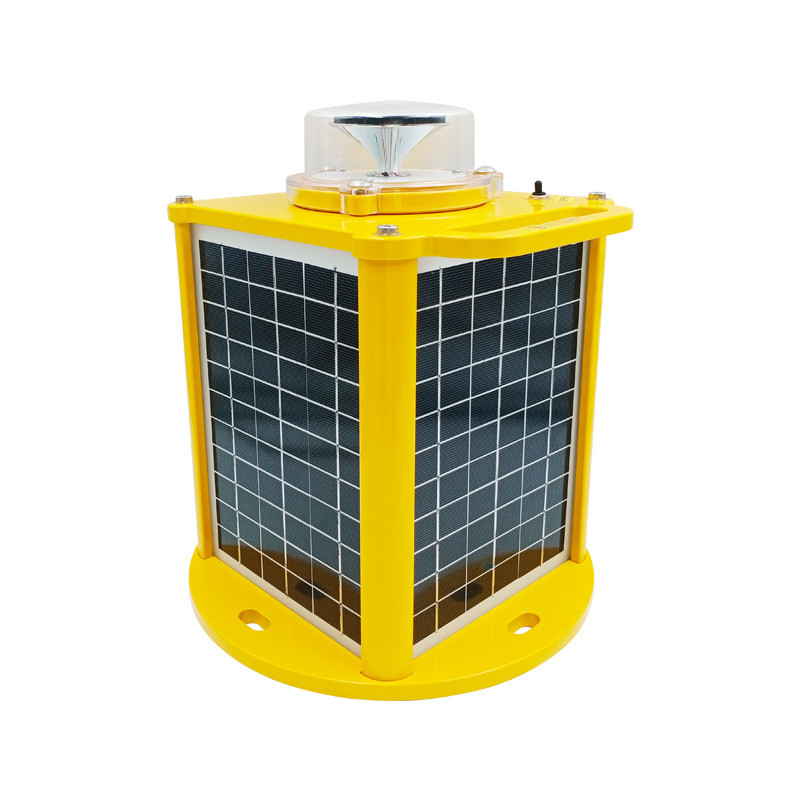

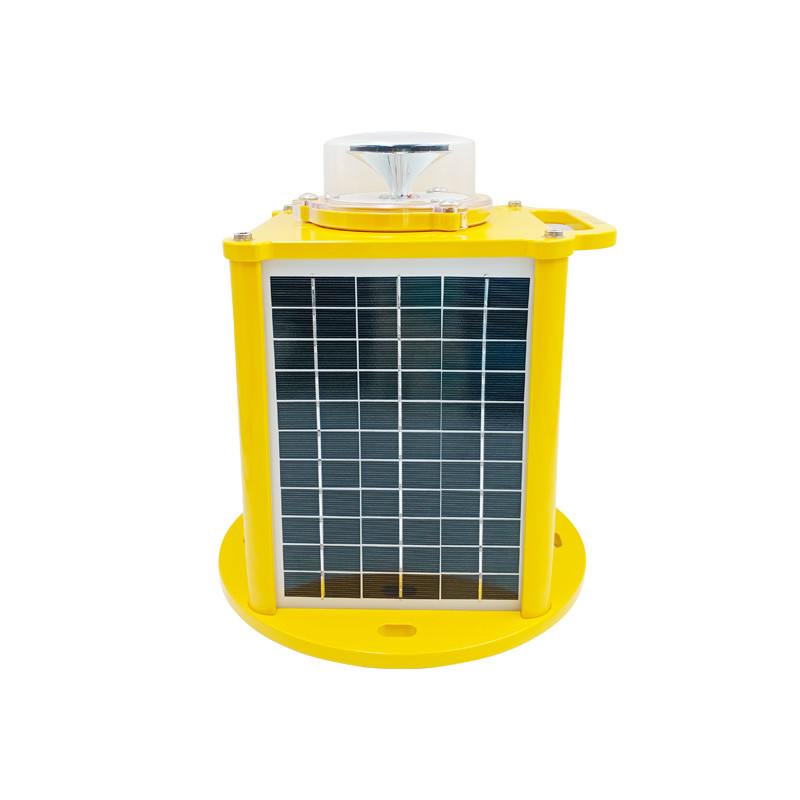

Remote Monitoring LED Solar Powered Marine Lantern
Specification
| Name | Parameter | Name | Parameter |
| Type | GS-LS/SH | Light Source Life | ＞100000 hours |
| Power Provider | Mono-crystalline silicon solar panel | Optional Emitting Light Colors | Red, Amber Yellow, Green, Blue, White |
| Battery Capacity | 12V14AH | Battery Type | Sealed lead-acid battery |
| Solar panel power | 6W x 4pcs | Solar panel voltage | 16.5V |
| Power Consumption | ≤15W | Vertical Divergence | ＞7° |
| Visual Range | 1~6NM | Horizontal Out-put | 360° |
| Light Source | LED | Overall Size(mm) | 260×260×300 mm |
| Working temperature | -40℃~70℃ | Installation Size(mm) | Pitch circle 220 mm distributed 4M12 holes |
| Storage temperature | -40℃～70℃ | Wind-speed Ability | 80m/s |
| Sun Switch Illumination Threshold | 300LUX±100LUX | Working mode | Customer specified light characteristics |
| Continuous Burning Time in rainy days |
＞20 days (12 hours a day) |
IP Protection | IP67 |
| Weight | 7kg | Light Characteristics | IALA standard 350 lights Characteristics adjustable |
Function & Features
- Continuous working time in rainy day can reach more than 20 days (12 hours a day).
- Photocell can switch ON/OFF the light in rainy days or at night automatically
- Standardization of optical design, high photoelectric conversion efficiency.
- Special LED chips for aviation obstruction lights, conversion efficiency is much higher than other general LED.
- Provide ability of lightning protection, light fastness, resist snow and rain.
- Base on LED technology, its color meet the ALA Recommendations E-200-1 requirement.
- Replaceable sealed lead-acid battery is used inside, with service life of more than 2 years.
- 350 light characteristics, user can adjust according to require.
- No radio frequency (RF), no electromagnetic interference.
- Working stable and low cost.
Usage notice
1.Please read the instruction carefully and then use the device correctly.
2.Solar powered Aviation obstruction light must be installed in a sunny place to keep it working continuously.
3.Please install this light on the Installation plane that perpendicular to light axis, installation plane should has mechanical strength.
4.If the device fails to work at the first using time, please place the device under sunlight to recharge power 12hours, it will work.
5.Please turn off the device and put it in a sunlight for 5day(s) to recharge power each 3 months if it needs to be stored for a long time.
6.If there any other problem please contact us.
Application
Sea lanes
Rivers
Lakes
Aquaculture areas,
Buildings
Bridges
Iron towers
Communication towers
Chimneys
Airport runways
Helipads
Traffic barriers
Tower cranes
Dimension drawing
