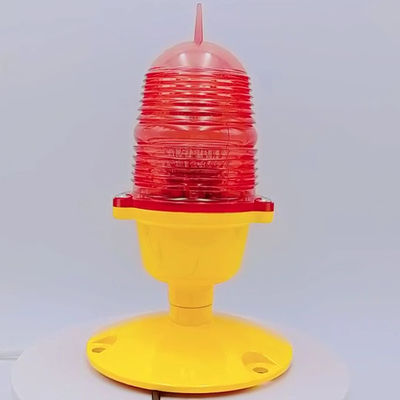

High quality red steady light IP 67 low intensity obstruction lights for high buildings

Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-LI/B
Minimum Order Quantity 1pc
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
FAA Classify L-810 Type Aircraft Warning Lights
Operating Voltage AC 110V/220V, DC 12V/24V/48V Power Supply Frequency 50Hz~60Hz
Power Consumption ≤3W Working Mode Steady Burning, Or Flashing 20~60 Times/min
Light Intensity Type B ≥32.5cd Type A≥10cd Horizontal Out-put 360°
IP Grade IP67 Ambient Temperature -40℃~70℃
Anti-wind Ability 120m/s
Leave a Message
Product Description

Aviation obstacle lights for tower cranes​


GS-LI/B Low-intensity Aviation Obstruction Light. Base with high intensity aviation aluminum casting, fully sealed structure.

Light source adopt with independent research and development dedicated LED chip, which have the specific of low power consumption and long long life.

Lampshade adopt with PC material, it can resist corrosion, anti-UV, anti-shock.IP 67 protection grade, it can soak in the water without any problem.

Management circuit with Strong lightning protection and With the surge protection device, which can adopt to extremely bad working environment.

This lamp with photo switch, it can turn on when light intensity less than 50LUX, and turn off when above 50Lux. User don't need to turn on and off


FAA Classify: L-810
Operating Voltage: AC 110V/220V, DC 12V/24V/48V
Power Supply Frequency: 50Hz~60Hz
Power Consumption: ≤3W
Working Mode: Steady burning, or flashing 20~60 times/min
Light Intensity: Type B ≥32.5cd Type A≥10cd
Horizontal Out-put: 360°
Vertical Divergence: 10°
Light Source Service Life: ≥20 years
Emitting Color: Red
Overall Size: 136mm×136mm×220mm
Installation Size: 3/4inches or 1 inch, chassis install
IP Protection: IP67
Optical Ambient Brightness: 50/100Lux
Ambient Temperature: -40℃~70℃
Weight: 1.2kg
Anti-wind Ability: 120m/s

1. PC material with good impact protection strength, thermal stability, high transmittance.Very good quality !
2. Bird spike against bird drop.It can prevent the bird stand on it.
3. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100,000hours.
4. LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5. About 96% less power than 116W incandescent light.
6. Major maintenance cost saving,Surge protection device inside light.
7. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8. Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9. 3/4inch or 1inch installation size and small volume especially being suitable for telecom and flag-pole installation way.
10. There is one switch converting between Flashing mode and Steady-burning mode.
11. Two Years Warranty Period.During 2 years warranty ,if there is any quality problem , we will send component to replace for free , if can't repair, we will send new one for replace.

Attention / Usage Tips
1. Check whether the supply voltage does comply with the rated voltage of device.
2. Do not open Aviation light if the light is out of operation, in order not to be hurt by the internal high pressure.
3. After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tight
4. Non-professional workers cannot do the device maintenance, in order not to expand the error and be hurt.

High Mastlamp
Telecom towers, GSM towers, Electric towers
High-rise Buildings

High quality red steady light IP 67 low intensity obstruction lights for high buildings 0

Dimension drawing

High quality red steady light IP 67 low intensity obstruction lights for high buildings 1

Our Showroom

High quality red steady light IP 67 low intensity obstruction lights for high buildings 2
