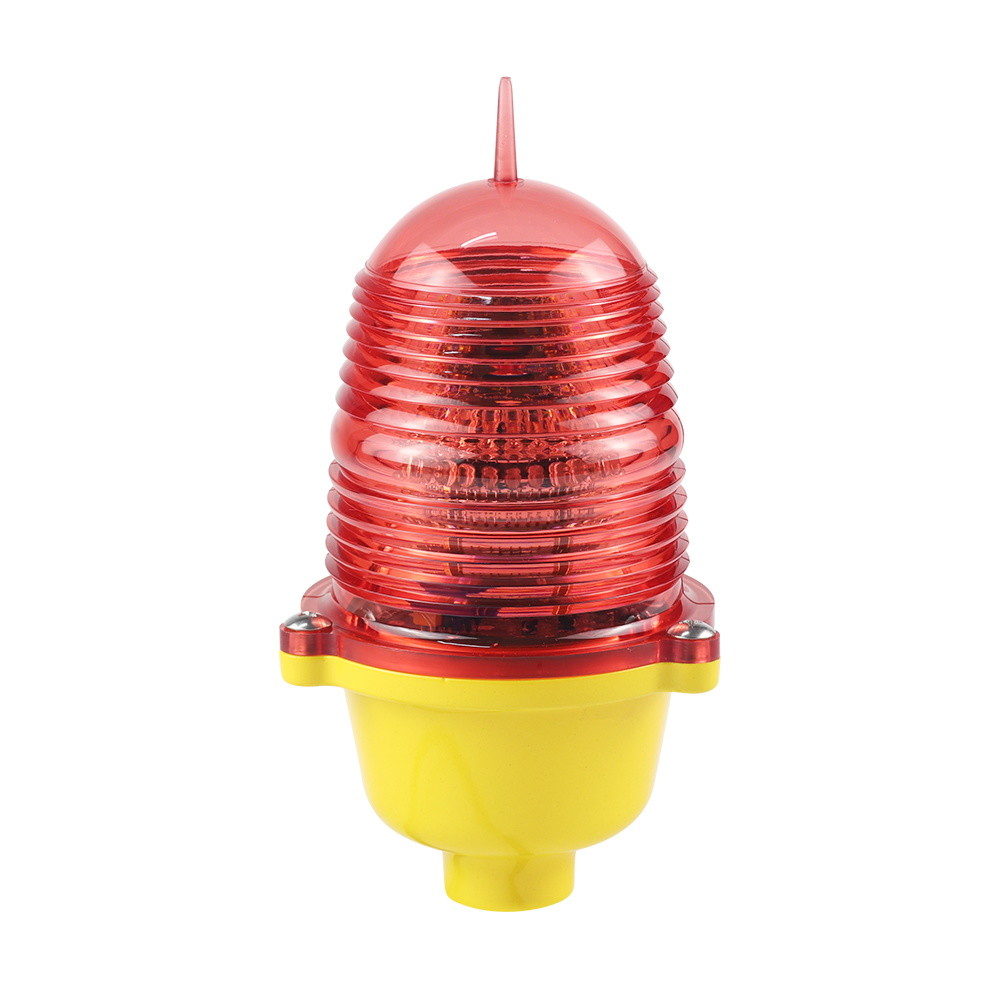

100Lux 3W 32.5cd Low Intensity Obstruction Light For Towers
|FAA Classify||L-810||Type||32.5cd Red Low Intensity Obstruction Light For Towers|
|Operating Voltage||AC 110V/220V, DC 12V/24V/48V||Power Supply Frequency||50Hz～60Hz|
|Power Consumption||≤3W||Working Mode||Steady Burning, Or Flashing 20~60 Times/min|
|Light Intensity||≥32.5cd||Horizontal Out-put||360°|
32.5cd Low Intensity Obstruction Light,
3W Low Intensity Obstruction Light,
100Lux Aircraft Warning Light
32.5cd red low intensity obstruction light for towers
|Operating Voltage:||AC 110V/220V, DC 12V/24V/48V|
|Power Supply Frequency:||50Hz～60Hz|
|Working Mode:||Steady burning, or flashing 20~60 times/min|
|Light Source Service Life:||≥20 years|
|Installation Size:||3/4inches or 1 inch, chassis install|
|Optical Ambient Brightness:||50/100Lux|
1. PC material with good impact protection strength, thermal stability, high transmittance.
2. Bird spike against bird drop.
3. Aircraft warning light international-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100,000hours.
4. LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5. About 96% less power than 116W incandescent light.
6. Major maintenance cost saving,Surge protection device inside light.
7. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8. Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9. 3/4inch or 1inch installation size and small volume especially being suitable for telecom and flag-pole installation way.
10. There is one switch converting between Flashing mode and Steady-burning mode.
11. L-810 obstruction light price include five Years Warranty Period.
Attention / Usage Tips
1. Check whether the supply voltage does comply with the rated voltage of device.
2. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
3. After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tight
4. Non-professional workers cannot do the device maintenance, in order not to expand the error and be hurt.

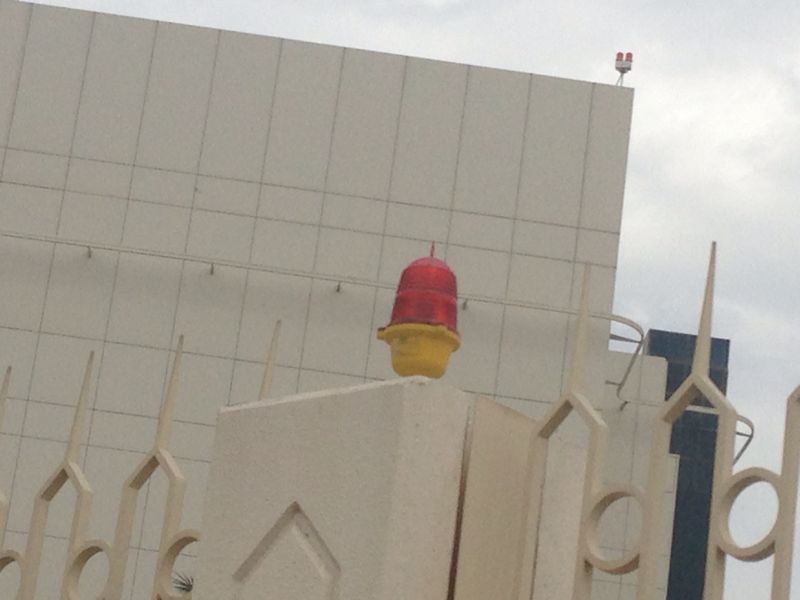

Telecom towers, GSM towers, Electric towers
