Telecom Tower 32cd DC48V Aircraft Warning Lights Low Intensity
FAA Classify | L-810 | Type | GS-LI/B GS-LI/A |
---|---|---|---|
Operating Voltage | DC 12V/24V/48V | Color | Red |
Power Consumption | ≤3W | Working Mode | Steady Burning, Or Flashing 20~60 Times/min |
Light Intensity | Type B ≥32.5cd Type A≥10cd | Optional | GPS Localtor |
High Light | DC48V Aircraft Warning Lights,32cd Aircraft Warning Lights,DC48V Tower Warning Lights |
Telecom Tower 32cd DC48V Aircraft Warning Lights Low Intensity
Low Intensity Type B 32cd DC48V Telecom Tower Aircraft Warning Lights
Specification | |
FAA Classify: | L-810 |
Type: | GS-LI/B GS-LI/A |
Operating Voltage: | DC12-48V |
Power Consumption: | ≤3W |
Working Mode: | Steady burning, or flashing 20~60 times/min |
Light Intensity: | Type B ≥32.5cd Type A≥10cd |
Horizontal Out-put: | 360° |
Vertical Divergence: | 10° |
Light Source Service Life: | ≥20 years |
Emitting Color: | Red |
Overall Size: | 143mm×143mm×125mm |
Installation Size: | 3/4inches or 1 inch, chassis install |
IP Protection: | IP67 |
Optical Ambient Brightness: | 50/100Lux |
Ambient Temperature: | -40℃~70℃ |
Weight: | 1.2kg |
Anti-wind Ability: | 120m/s |
Features
1. Integrated reflective optical structure, more uniform luminescence, lower power consumption.
2. Bird spike against bird drop.
3. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100,000hours.
4. LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5. About 96% less power than 116W incandescent light.
6. Major maintenance cost saving,Surge protection device inside light.
7. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8. Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9. 3/4inch or 1inch installation size and small volume especially being suitable for telecom and flag-pole installation way,and can be installed with base, can raise the strut.
10. There is one switch converting between Flashing mode and Steady-burning mode.
11. Five Years Warranty Period.
Attention / Usage Tips
1. Check whether the supply voltage does comply with the rated voltage of device.
2. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
3. After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tight
4. Non-professional workers cannot do the device maintenance, in order not to expand the error and be hurt.
Application
Block
Airport
High Mastlamp
Chimney
Bridge
Telecom towers, GSM towers, Electric towers
High-rise Buildings

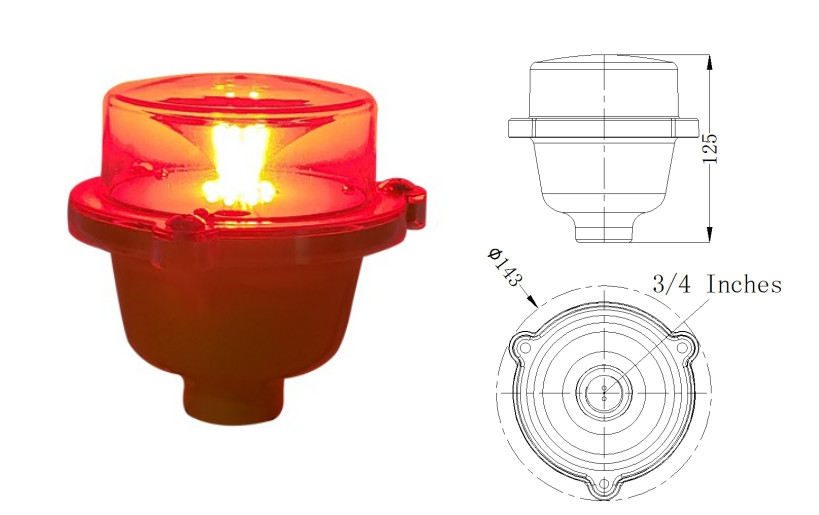

Drawing
FAQ
Q1:Can I have a sample order for your products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.
Q3:Do you have any MOQ limit order?
A:No limit, 1pc for sample checking is avaiable.
Q4:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.
Q5:How to procced an order?
A:Firstly let us know your requirement or appliction.
Secondly we will quote according to your requirement or suggested appropriate products.
Thirdly you confirm prices and check the samples.
Fourthly you confrim order and place deposit for formal order.
Then we will arrange the mass production for you.
Q6: is it OK to print my logo on product?
A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer guarantee for the products?
A:Yes. we offer 2~5years warranty on our products.
Q8:How to deal with the faulty?
A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
