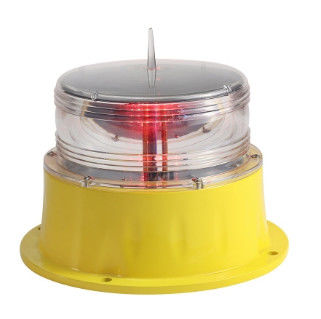

Steady Burning 200cd LED Obstruction Light

  • Steady Burning 200cd LED Obstruction Light
  • Steady Burning 200cd LED Obstruction Light
  • Steady Burning 200cd LED Obstruction Light
  • Steady Burning 200cd LED Obstruction Light
  • Steady Burning 200cd LED Obstruction Light
Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-LI/C
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
Horizontal Out-put 360° Light Intensity ≥200cd
Working Mode Steady Burning Average Power Consumption ≤15W
Power Supply Frequency 50Hz～60Hz Power Supply AC 110V/220V,DC 12V/24/48V
Type Steady Burning 200cd LED Obstruction Light Classify L-810
High Light

DC12V led obstruction light

,

DC24V led obstruction light

,

DC48V led obstruction light
Leave a Message
Product Description

Steady Burning 200cd LED Obstruction Light





Specification


Classify: L-810
Type: GS-LI/C
Power Supply: AC 110V/220V,DC 12V/24/48V
Power Supply Frequency: 50Hz～60Hz
Average Power Consumption: ≤15W
Working Mode: Steady burning
Light Intensity: ≥200cd
Horizontal Out-put: 360°
Vertical Divergence: ≥10°
Service Life of the Light Source: ≥20years
Emitting Color: Red
Overall Size(mm): Φ255 x 210
Installation Size(mm): Φ234 x M8
IP Protection: IP67
Optical Ambient Brightness: 50/100Lux
Ambient Temperature: -40℃～70℃
Weight: 3.2kg
Anti-Wind Ability: 80m/s


Features
1. Adopts imported chip, which has the specific of high light intensity, low power consumption, long service life.
2. The shell adopts high intensity aviation aluminum to cast, with full-seal structure
3. Independent research and development design with patent condensing lens,field angle follow standard of FAA,ICAO.
4. Lamp shade adopts PC material,provide strong ability of corrosion resistance, anti-UV, anti-shock.
5. With anti-surge protection device,it can adapt to extremely bad working environment.
6. Adopts advanced technology of stoving varnish, provide excellent heat dissipation, Can reduce the volume and weight of lamps effectively
7. Possess ability of anti-shock, light fastness, anti rain and snow.
8. With over-current protection function.

Usage notice
1. Check whether the supply voltage does comply with the rated voltage of device.
2. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
3. After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
4. Non-professional workers can not do the device maintenance, in order not to expand the error and be hurt.

Application
Block
Airport
High Mast lamp
Chimney
Telecom towers
Bridge
High-rise Buildings

Dimension drawing

Steady Burning 200cd LED Obstruction Light 0
