Steady Burning 10W 100cd Aiming Point Helicopter Pad Lights

Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-HP/A
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
IP Protection IP66 Emitting Color White
Light Source Service Life ≥20 Years Maximum Intensity ≥100cd
Working Mode Steady Burning Average Power Consumption ≤ 10W
Power Supply Frequency 50HZ~60HZ Power Supply Optional Voltage: AC220V, AC120V, DC48V
High Light

10W Helicopter Pad Lights


100cd Helicopter Pad Lights


10W Aiming Point Light

Leave a Message
Product Description

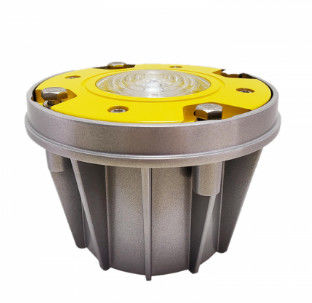

Steady Burning 10W 100cd Aiming Point Helicopter Pad Lights



Type GS-HP/A
Power Supply Optional voltage: AC220V, AC120V, DC48V
Power Supply Frequency 50HZ~60HZ
Average Power Consumption ≤ 10W
Working Mode Steady burning
Maximum Intensity ≥100cd
Light Source Service Life ≥20 years
Emitting Color White
Overall Size ¢194mm(D)×140mm(H)
Minimum Embedded Pit Size ¢199mm×145mm
IP Protection IP66
Ambient Temperature -20℃~60℃
Net Weight 4.5Kg
Humidity <95%
Altitude <4500M

Function & Features

  1. Adopt the superior thermal performance of aviation aluminum weight casting,provides excellent cooling environment for LED light source.
  2. With work stability, strong anti-interference ability and shock resistance.
  3. Full sealed structure base, with superior waterproof performance.
  4. With storm surge protection device.
  5. Shielding sealed power supply, with excellent waterproof and anti-jamming.
  6. Adopt independent encapsulation of high-power LED light source,which has the specific of high light brightness, and long service life.

Usage notice

  1. Don't use any out of nominal voltage,or will destroy equipment.
  2. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
  3. After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
  4. Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.

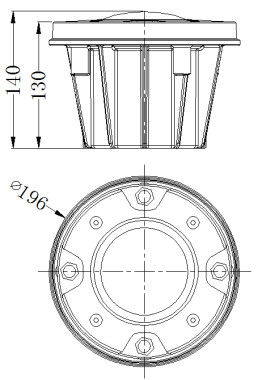

Dimension drawing

Steady Burning 10W 100cd Aiming Point Helicopter Pad Lights 0
