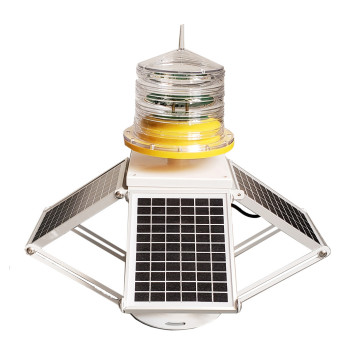

Marine 1-6NM 14AH Solar Buoy Light Mono Crystalline Silicon
Product Details
| Power Provider | Mono-crystalline Silicon Solar Panel | Optional Emitting Light Colors | Red, Amber Yellow, Green, Blue, White |
|---|---|---|---|
| Battery Capacity | 12V14AH | Battery Type | Special Battery |
| Solar Panel Power | 6W X 4pcs | ||
| High Light | 6NM Solar Buoy Light,14AH Solar Buoy Light,Solar Marine Floating Beacon Lights |
||
Product Description
Description
GS-LS/B LED Solar Powered Marine Lanterns used advanced structure design, adopts 4 groups of solar panels which can angle adjustable and high efficiently, co-operate with solar dedicated battery as power supply.
Advanced power management system will be used to charge the power in a comprehensive protection in order to save the service life of battery, when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.
Management circuits adopt with low power dissipation control chip,which can reduce circuit power consumption, The light source adopts imported LED chip, which has the specific of high intensity, low power consumption, long service life and so on.
This product adopt with 316L stainless steel materials of the lacquer that bake.it is very convenient for installation and transportation.
Lampshade adopt with PC material, which can resist corrosion, anti-UV, anti-shock and so on.
Function & Features
- Continuous working time in rainy day can reach more than 20 days (12 hours a day).
- Photocell can switch ON/OFF the light in rainy days or at night automatically.
- Standardization of optical design, high photoelectric conversion efficiency
- Special LED chips for aviation obstruction lights, conversion efficiency is much higher than other general LED.
- Provide shock resistance, lightning-proof, sunlight resistance, rain and snow resistance.
- Base on LED technology, its color meet the IALA Recommendations E-200-1 requirement.
- Replaceable sealed lead-acid battery which service life can reach more than 2 years long.
- GPS synchronizing function,remote monitoring control function optional.
- Bird spike against bird drop.
- No radio frequency (RF), no electromagnetic interference.
- Optional remote control function.
Specification
| Name | Parameter | Name | Parameter |
| Type | GS-LS/B | Light Source Life | ＞100000 hours |
| Power Provider | Mono-crystalline silicon solar panel | Optional Emitting Light Colors | Red, Amber Yellow, Green, Blue, White |
| Battery Capacity | 12V14AH | Battery Type | Special battery |
| Solar panel power | 6W x 4pcs | Solar panel voltage | 16.5V |
| Power Consumption | ≤2W | Vertical Divergence | ＞8° |
| Visual Range | 6~12 NM | Horizontal Out-put | 360° |
| Light Source | LED | Overall Size(mm) | 522×522×472 mm |
| Working temperature | -40℃~70℃ | Installation Size(mm) | Pitch circle 160 mm distributed 4M12 holes |
| Storage temperature | -40℃～70℃ | Working mode optional | 350 lights Characteristics |
| Sun Switch Illumination Threshold | 300LUX±100LUX | Wind-speed Ability | 80m/s |
| Continuous Burning Time in rainy days |
＞20 days (12 hours a day) |
IP Protection | IP65 |
| Weight | 8.5kg | Remote monitoring | Optional |
Dimension Drawing
Application
Sea buoy, River way, Shore beacon, Fixed light pile, Lighthouse, Oilfield , Derrick
