FAA IP68 Remote Control Solar Runway Threshold Light For Airport
Product Details
| Model | Solar Runway Threshold Light For Airport | Power Supply | Solar Power Supply |
|---|---|---|---|
| Solar Panel | 2.8W | Battery Voltage | 3.2v |
| Battery Capacity | 3.3ah | Battery Type | Class A Lithium Iron Phosphate Battery |
| Battery Life | 5 Years | Duration In Rainy Days | 15 Days |
| High Light | FAA Solar Runway Threshold Light,IP68 Solar Runway Threshold Light,Intensity Adjustable Airport Taxiway Lights |
||
Product Description
FAA IP68 Intensity Adjustable By Wireless Remote Control Solar Runway Threshold Light For Airport
Specification
| Name | Parameter |
| Model | GS-JC/RK |
| Power Supply | Solar powered supply |
| Solar panel power | 2.8W |
| Battery voltage | 7.4V |
| Battery capacity | 12AH |
| Battery type | Anti-explosion type A grade ternary lithium battery |
| Battery life | 3~5 years |
| Average Power Consumption | ≤0.3W |
| Wireless Control Distance | The best distance is 5～10KM, with repeater 10～20KM |
| Working Mode | Steady-burning |
| Emitted color | Green/Red |
| Horizontal Beam Angle | 360° |
| Dimming level | Comply with military standard |
| Light Source Service Life | ≥20 years |
| Overall Size | 186mm×186mm×245mm |
| Installation Size | ￠145mm×M10 |
| IP Protection | Light IP68, Remote IP65 |
| Ambient Temperature | -50℃～60℃ |
| Weight | 1.4KG |
| Humidity | ＜95% |
| Altitude | ＜4500M |
| Standard | Comply to ICAO Annex 14, FAA AC 150/5345-46B |
Function & Features
1. With work stability, strong anti-interference ability and shock resistance.
2. Full sealed structure base, with superior waterproof performance.
3. With the anti-surge protection device.
4. Professional custom LED chips,which has the specific of high light brightness and long service life.
5. Transformer isolation step-down, all electrical work in low voltage circuit can save the service life of light source.
6. Easy to fold design, can reduce the secondary damage to helicopters effectively.
7. Arc adjustable design in chassis mounting holes, easy to install.
8. PC material cover, provides corrosion resistance and UV protection.
2. Full sealed structure base, with superior waterproof performance.
3. With the anti-surge protection device.
4. Professional custom LED chips,which has the specific of high light brightness and long service life.
5. Transformer isolation step-down, all electrical work in low voltage circuit can save the service life of light source.
6. Easy to fold design, can reduce the secondary damage to helicopters effectively.
7. Arc adjustable design in chassis mounting holes, easy to install.
8. PC material cover, provides corrosion resistance and UV protection.
Usage notice
1. Don't use out of standard voltage, or will destroy the device.
2. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
3. After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
4. Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.
Application
Type I , II , III airport taxiway edge light runway light.
Heliport

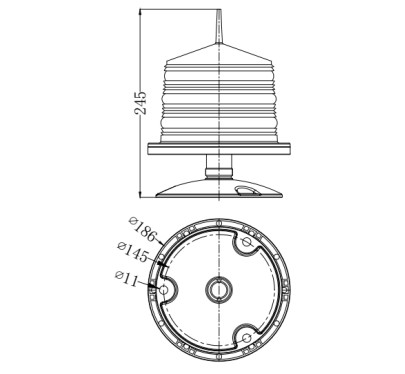

Dimension drawing
