Blue Color Heliport Elevated Taxiway Edge Light

Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-HP/L
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
Type GS-HP/L Power Supply Optional Voltage AC180V~AC265V
Supply Frequency 50HZ~60HZ Average Power Consumption ≤3W
Working Mode Steady Burning Intensity ≥2cd
Light Source Service Life ≥20 Years Emitting Color Optional Colors Blue
High Light

AC265V taxiway edge light


2cd taxiway edge light


3W taxiway edge light

Leave a Message
Product Description

Heliport Elevated Taxiway Edge Light


Type: GS-HP/L
Power Supply Optional voltage: AC180VAC265V
Supply Frequency: 50HZ~60HZ
Average Power Consumption: ≤3W
Working Mode: Steady burning
Intensity: ≥2cd

Light Source Service life: ≥20 years
Emitting Color Optional colors: Blue
Overall Size: 165mm×165mm×241mm
Installation Size: ¢145mm×M10(3 holes)
IP Protection: IP65
Ambient Temperature: -20℃~60℃
Weight: 1.8kg
Humidity: <95%
Altitude: <4500M

Function & Features

  1.  With work stability, strong anti-interference ability and shock resistance.
  2.  Full sealed structure base, with superior waterproof performance.
  3.  With the anti-surge protection device.
  4.  Professional custom LED chips, with high light brightness and long service life.
  5.  Transformer isolation step-down, all electrical work in low voltage circuit can save the service life of light source.
  6.  Easy to fold design, can reduce the secondary damage to helicopters effectively.
  7.  Arc adjustable design in chassis mounting holes, easy to install.
  8.  PC material cover, provides corrosion resistance and UV protection.

Usage notice

  1.  Don't use any out of nominal voltage,or will destroy equipment.
  2.  Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
  3.  After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
  4.  Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.

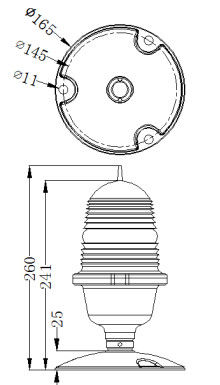

Dimension drawing
Blue Color Heliport Elevated Taxiway Edge Light 0
