Bearing Capacity 50tons Pedestrian Crossing Light

Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-JT/B
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
Emitting Color Red At Bothway Light Source Service Life ≥20 Years
Bearing Capacity 20-50tons Working Mode Steady-burning
Average Power Consumption ≤2W Supply Frequency 50HZ~60HZ
Power Supply Optional Voltage AC220V, AC120V, DC12-48V Type Bearing Capacity 20tons Pedestrian Crossing Light
High Light

2W pedestrian crossing light


50tons pedestrian crossing light


20tons pedestrian crossing light

Leave a Message
Product Description

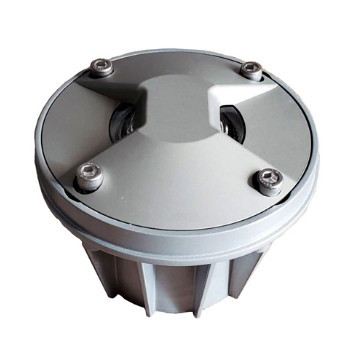

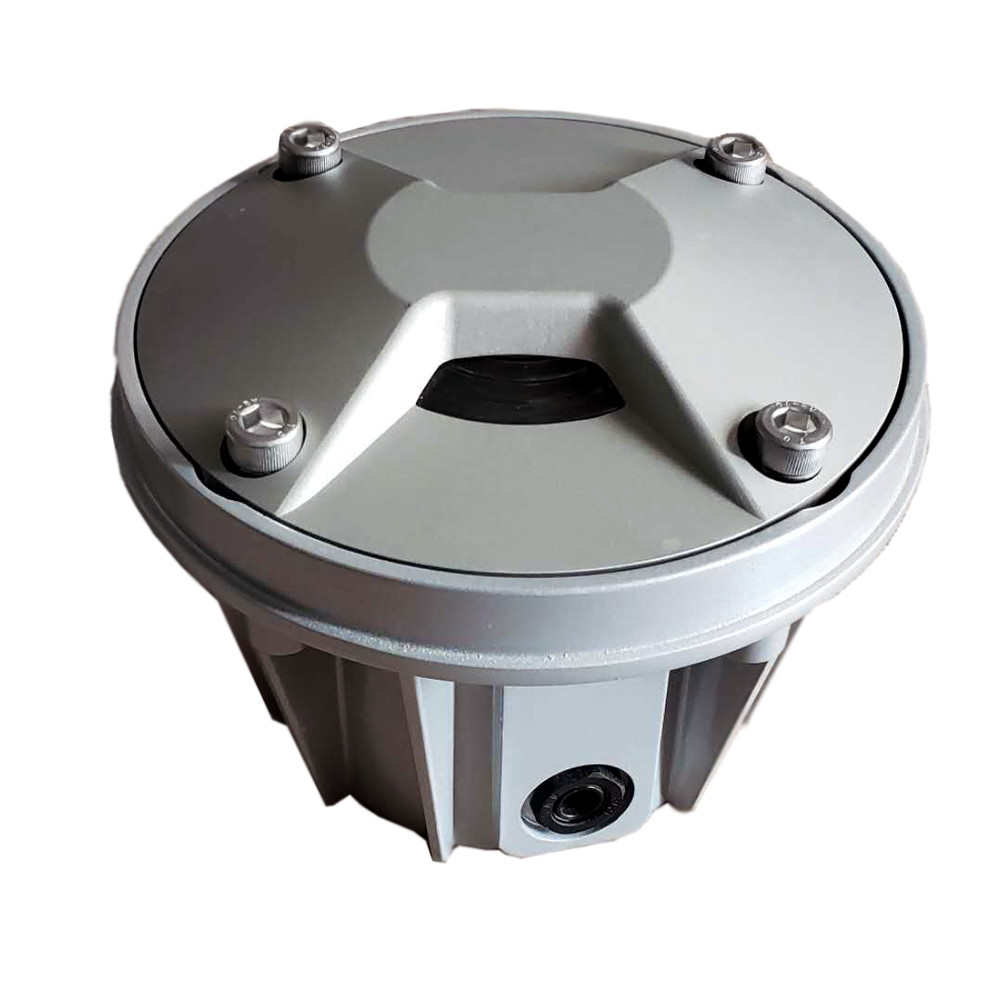

Bearing Capacity 50tons Pedestrian Crossing Light


Type: GS-JT/B
Power Supply Optional voltage: AC220V, AC120V, DC12-48V
Supply Frequency: 50HZ~60HZ
Average Power Consumption: ≤2W
Working Mode: Steady-burning
Bearing Capacity: 20-50tons
Light Source Service Life: ≥20 years
Emitting color: Red at bothway
Overall Size: ¢196mm(D)×140mm(H)
Minimum Embedded Pit Size: ¢206mm×145mm
IP Protection: IP68
Ambient Temperature: -55℃~85℃
Net Weight: 3.5Kg
Humidity: <95%
Altitude: <4500M

Function & Features

  1. With work stability, strong anti-interference ability and shock resistance.
  2. Full sealed structure base, with superior waterproof performance.
  3. With the anti-surge protection device.
  4. High power CREE LED chips, with high light brightness and long service life.
  5. Use shielded sealed power supply, with excellent waterproof and anti - interference.
  6. Use airport special toughened glass optical lens.

Usage notice

  1. Don't use any out of nominal voltage,or will destroy equipment.
  2. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
  3. After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
  4. Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.


Traffic road

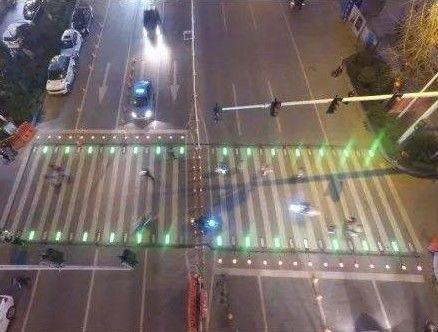

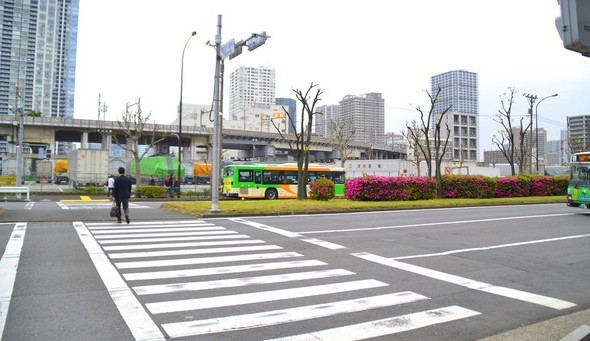

Pedestrian zabra crossing
Traffic intersection
Traffic light crossing

Dimension drawing
