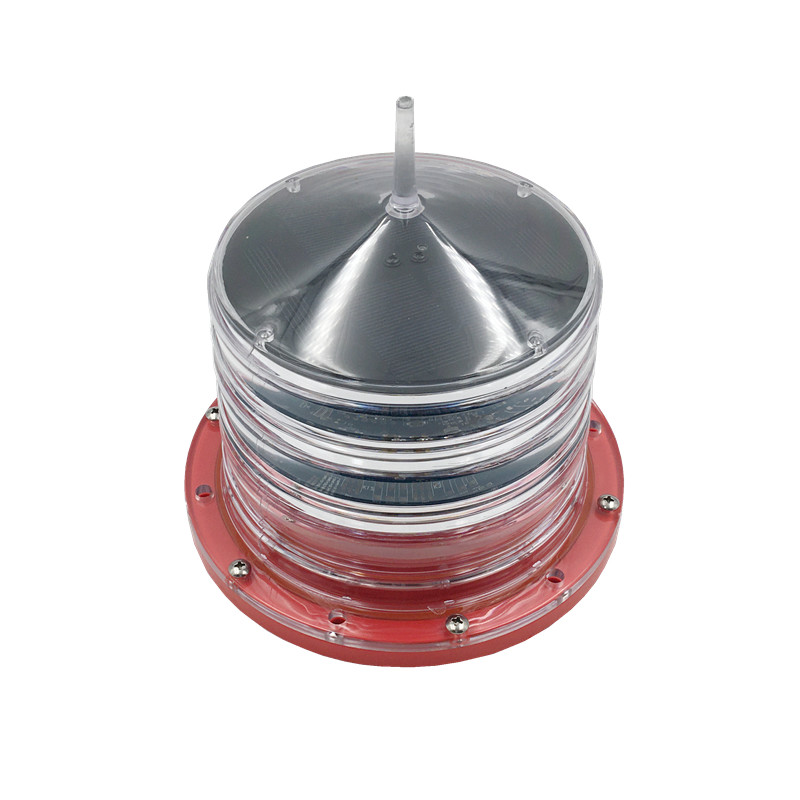

Anti Wind Solar Panel Aviation Obstruction Light 1-4NM
|Product Name||Built In Solar Panel Marine Navigation Lights||Light Source Service Life||＞100000 Hours|
|Emitting Color||Red,Blue,White,Green,Yellow||Battery Type||Replaceable Lithium Iron Phosphate Battery|
|Battery Life||>5years||Solar Panel Life||>20years|
|Vertical Divergence||>10°||Horizontal Out-put||360°|
Solar Panel Aviation Obstruction Light,
Anti Wind Aviation Obstruction Light,
4NM Solar Powered Warning Lights
Built In Solar Panel Marine Navigation Lights
|Model No.:||GS-LS/E||Light Source Service Life:||＞100000 hours|
|Power Supply:||Mono crystalline silicon solar panel||Emitting Color:||Red,Blue,White,Green,Yellow|
|Battery capacity:||3.2V3.3AH||Battery Type:||Replaceable lithium iron phosphate battery|
|Solar panel power:||2W||Battery life:||>5years|
|Solar panel voltage:||5.5V||Solar panel life:||>20years|
|Instantaneous power:||≤2W||Vertical divergence:||>10°|
|Visual range:||1-4NM||Horizontal Out-put:||360°|
|Light source:||LED||Overall Size:||186mm(D)×190mm(H)|
|Storage temperature:||-40℃～70℃||Installation Size:||￠170mm×M6|
|Working Temperature:||-20℃～60℃||Anti-wind Ability:||80m/s|
|steady light intensity:||20CD||flashing light intensity:||＞32.5CD|
|Weight:||1.2kg||Working mode:||Flashing/steady(default flash 20 times/m)|
|Continuous working time in rainy day:||> 15days( work 10 hours a day)||Optically Controlled Ambient Brightness:||300LUX±100LUX|
Function & Features
1. Continuous working time in rainy day can reach more than 15 days(10 hours a day).
2. Photocell can switch ON/OFF the light in rainy days or at night automatically.
3. Standardization of optical design, high photoelectric conversion efficiency.
4. Adopts high efficient solar chip,photoelectric conversion efficiency is over 19%.
5. The integration of the waterproof design, it can work in soaking in sea water, High protection grade IP68.
6. Adopts special customized LED chip,transfer efficiency and service life is higher than normal LED.
7. Circuit adopts advanced charging and discharging management system,prolong battery’s life effectively.
8. The lamp extend state switch, it can adjust steady or flashing light working mode base on requirement.
9. Provides strong corrosion resistance, lightning resistance,UV resistance, impact resistance.
10. The base adopts marine-grade dedicated plastic material,it can apply to seaways ,riverway,chemical plant and airport that have hostile and strong corrosive environment.
11. With anti-bird device.
12. No radio frequency (rf), no electromagnetic interference.
13. Steady working, low cost.
1. Please read the instruction carefully and then use the device correctly.
2. Solar powered marine lantern must be installed in a sunny place to keep it working continuously.
3. Please install this light on the Installation plane that perpendicular to light axis, installation plane should has mechanical strength.
4. If the device fails to work at the first using time, please place the device under sunlight to recharge power 12hours, it will work.
5. Please turn off the device and put it in a dry place, to ensure the life of the battery.please put it in a sunlight for 5day(s) to recharge power each 3 months if it needs to be stored for a long time.
6. If there any other problem please contact us.
Fixed light pile
