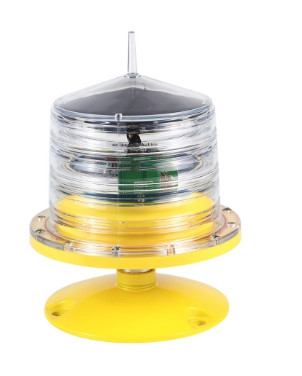

3.2V 2.8W 10CD Solar Elevated Helicopter Pad Lights

  • 3.2V 2.8W 10CD Solar Elevated Helicopter Pad Lights
  • 3.2V 2.8W 10CD Solar Elevated Helicopter Pad Lights
  • 3.2V 2.8W 10CD Solar Elevated Helicopter Pad Lights
  • 3.2V 2.8W 10CD Solar Elevated Helicopter Pad Lights
Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-HP/HB
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
Duration In Rainy Days 15 Days Battery Life 5 Years
Battery Type Class A Lithium Iron Phosphate Battery Battery Capacity 3.3ah
Battery Voltage 3.2v Solar Panel 2.8w
Power Supply Solar Power Supply Model Solar Elevated Helicopter Pad Lights
High Light

10CD Helicopter Pad Lights

,

3.2V Helicopter Pad Lights

,

2.8W airport taxiway edge lights
Leave a Message
Product Description

3.2V 2.8W 10CD Solar Elevated Helicopter Pad Lights



Specification

Model: GS - HP/HB

Power supply: Solar power supply

Solar panel: 2.8w

Battery voltage: 3.2v

Battery capacity: 3.3ah

Battery type: class A lithium iron phosphate battery

Battery life: 5 years

Duration in rainy days: 15 days

Average power consumption: 0.3w

Working mode: constant light

Emitting color: Optional white,blue,yellow, red , yellow/white,red/white

Maximum intensity: 10CD

Lighting Angle: 360 °

Life of light source: 20 years

Oversize dimension: ￠186 mm x 245 mm (H) (D)

Installation dimensions: ￠145 mm x M10 (uniform three mounting holes)

Protection level: IP68

Ambient temperature: - 50 ℃ ~ 70 ℃

Net weight: 1.8 Kg

Humidity: < 95%

Altitude: < 4500M

Conformity: Comply with ICAO Annex 14,FAA AC 150/5345-46B



Function & Features

1. With work stability, strong anti-interference ability and shock resistance.
2. Full sealed structure base, with superior waterproof performance.
3. With the anti-surge protection device.
4. Professional custom LED chips,which has the specific of high light brightness and long service life.
5. Transformer isolation step-down, all electrical work in low voltage circuit can save the service life of light source.
6. Easy to fold design, can reduce the secondary damage to helicopters effectively.
7. Arc adjustable design in chassis mounting holes, easy to install.
8. PC material cover, provides corrosion resistance and UV protection.



Usage notice

1. Don't use out of standard voltage, or will destroy the device.
2. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
3. After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
4. Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.


Application
Type I , II , III airport taxiway edge light runway light.
Heliport

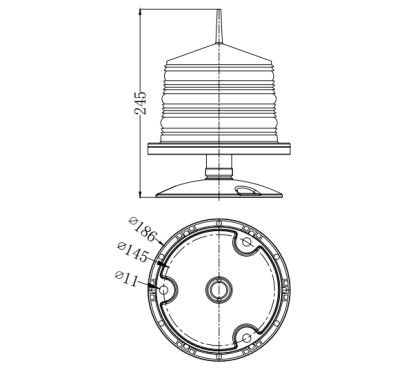

Dimension drawing
3.2V 2.8W 10CD Solar Elevated Helicopter Pad Lights 0
