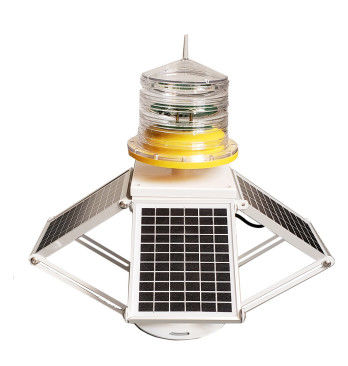

350 Flash Characteristic Solar Marine Navigation Lighting
Product Details
| Overall Size(mm) | 600 Mm×600mm×472 Mm | Horizontal Out-put | 360° |
|---|---|---|---|
| Vertical Divergence | ＞8° | Battery Type | Sealed Lead Acid Battery(or LiFePO4 Battery) |
| Solar Panel Power | 8W X 4pcs | Optional Emitting Light Colors | Red, Amber Yellow, Green, Blue, White |
| Light Source Life | ＞100000 Hours | Type | 350 Flash Characteristic Solar Marine Navigation Lighting |
| High Light | 5W Marine Lantern Light,8NM Marine Lantern Light,16.5V solar marine light |
||
Product Description
350 Flash Characteristic Solar Marine Navigation Lighting
Specification
| Name | Parameter | Name | Parameter |
| Type | GS-LS/B | Light Source Life | ＞100000 hours |
| Power Provider | Mono-crystalline silicon solar panel | Optional Emitting Light Colors | Red, Amber Yellow, Green, Blue, White |
| Solar panel voltage | 16.5V | Solar panel power | 8W x 4pcs |
| Battery Capacity | 12V12AH | Battery Type | Sealed lead acid battery(or LiFePO4 battery) |
| Power Consumption | ≤5W | Vertical Divergence | ＞8° |
| Visual Range | 8 NM(s) | Horizontal Out-put | 360° |
| Light Source | LED | Overall Size(mm) | 600 mm×600mm×472 mm |
| Working temperature | -20℃~60℃ | Installation Size(mm) | Pitch circle 160 mm distributed 4M12 holes |
| Storage temperature | -50℃～70℃ | Working mode | 350 light characteristics |
| Weight | 15.5kg | Wind-speed Ability | 80m/s |
| Continuous Burning Time in rainy days | ＞15 days(10 hours a day) | IP Protection | IP67 |
| Remote monitoring | Optional | Sun Switch Illumination Threshold | 300LUX±100LUX |
| GPS sync | Optional |
Function&Features
- Continuous working time in rainy day can reach more than 15 days(10 hours a day).
- Photocell can switch ON/OFF the light in rainy days or at night automatically.
- Standardization of optical design, high photoelectric conversion efficiency.
- Special LED chips for aviation obstruction lights, conversion efficiency is much higher than other general LED.
- Provide shock resistance, lightning-proof, sunlight resistance, rain and snow resistance;
- Base on LED technology, its color meet the IALA Recommendations E-200-1 requirement.
- Replaceable sealed lead-acid battery which service life can reach more than 2 years long.
- GPS synchronizing function,remote monitoring control function optional
- Bird spike against bird drop.
- No radio frequency (RF), no electromagnetic interference.
- Optional remote control function.
Usage notice
- Please read the instructions carefully and then use the device correctly.
- Solar powered marine lanterns must be installed in a sunny place to keep it working continuously.
- Please install the device on a surface vertical to its axis, and the installation surface should be smooth and have enough mechanical strength.
- If the device fails to work at the first using time, please place the device under sunlight to recharge power 12hours, it will work.
- Please turn off the device and kept in dry places,and put it in a sunlight for 5day(s) to recharge power each 3 months if it needs to be stored for a long time.
Application
- Sea buoy
- River way
- Shore beacon
- Fixed light pile
- Lighthouse
- Oilfield
- Derrick

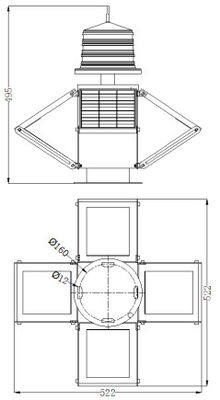

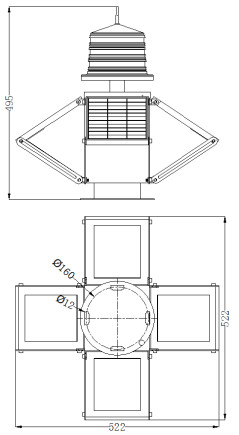

Dimension Drawing
