304 stainless steel windsock / wind direction beacon / windcone

Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-HP/W
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
Diameter Customized Height Customized
Mast Material SUS 304 Stainless Steel IP Protection IP65
Altitude ≤4500m Product Name Heliport Windsock Wind Cone
Ambient Temperature -40℃~85℃ Optional Supply Voltage DC12V, AC120V, AC220V
High Light

260Km/H heliport windsock


4500m heliport windsock


IP65 heliport windsock

Leave a Message
Product Description

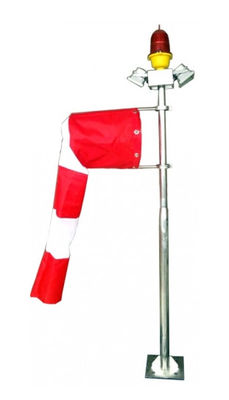

304 stainless steel windsock / wind direction beacon / windcone


Optional Supply Voltage: DC12V, AC120V, AC220V
Ambient Temperature: -40℃~85℃
Ambient Humidity: ≤95%
Altitude: ≤4500m
IP Protection: IP 65
Mast Material: SUS 304 stainless steel
Lighting Source of Flood Light: LED
Light Source Type of Obstruction Light: LED
Height: Customized
Chassis Installation Size: 350mm×M20×6PCS
Diameter: Customized
Maximum Design Wind Speed: 260Km/h
Quantity of Flood Light: Optional
Wind Sock Material: PVC

Function & Features

  1. Wind cone adopts PVC rain-proof material that resist corrosion and high temperature .
  2. Wind cone’s illuminate adopts high power LED flood Light ,LED flood light has advantage of long service life,saving power,high light intensity,which can reduce the cost of maintain in the future.
  3. Entirety structure adopts SU304 stainless steel ,which resist corrosion ,light weight.
  4. Can be put down and reduce the maintenance time.
  5. The top adopts a long service life low intensity aviation obstruction light, which makes this entire wind cone’s service life meet the advance international level.

Usage notice

  1. Don't use out of standard supply voltage, or will destroy the device.
  2. Windsock installation must be in a horizontal position.can use the spirit level to measure.
  3. The windsock used for outdoor,belong to the loss of accessories, do not regularly check and maintenance.
  4. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
  5. After finished the installation, the personnel must check whether the screw spikes are tightened.
  6. Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.

Gas station
Chemistry factory
Drilling platform

Dimension drawing

304 stainless steel windsock / wind direction beacon / windcone 0
