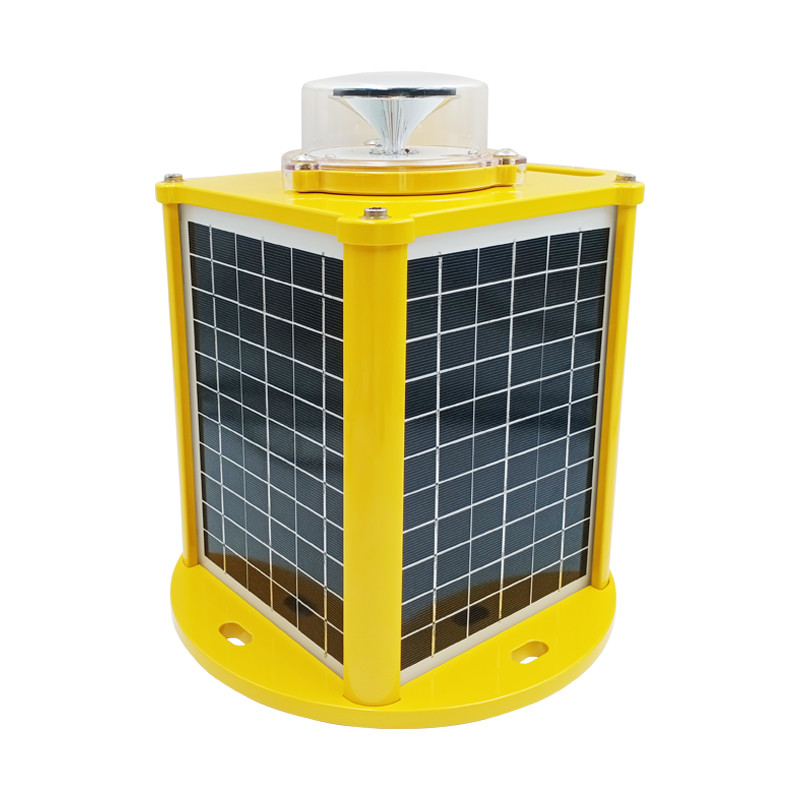

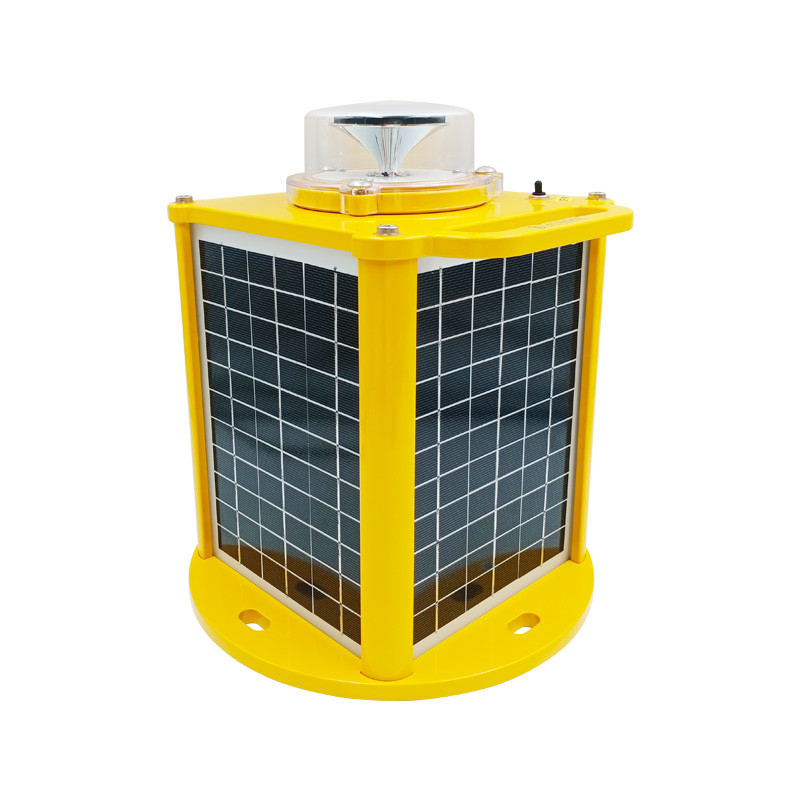

300LUX IP67 20CD Solar Powered Aviation Lighting Photocell
|Horizontal Out-put||360°||Vertical Divergence||>10°|
|Solar Panel Life||>20years||Battery Life||>3years|
|Battery Type||Lead-acid Battery||Emitting Color||Red|
|Light Source Service Life||＞100000 Hours||Model||Solar Powered 5km Red Aviation Obstacle Lamp|
20CD Solar Powered Aviation Lighting,
IP67 Solar Powered Aviation Lighting,
300LUX Low Intensity Obstruction Light
Solar Powered Aviation Lighting / Low Intensity Red Color Obstruction Light
|Model No.:||GS-LS/I||Light Source Service Life:||＞100000 hours|
|Power Supply:||Mono crystalline silicon solar panel||Emitting Color:||Red|
|Battery capacity:||12V14AH||Battery Type:||Lead-acid battery|
|Solar panel power:||6Wx4||Battery life:||>3years|
|Solar panel voltage:||5.5V||Solar panel life:||>20years|
|Instantaneous power:||≤3W||Vertical divergence:||>10°|
|Visual range:||5km||Horizontal Out-put:||360°|
|Light source:||LED||Overall Size:||260mm(D)x370mm(H)|
|Storage temperature:||-40℃～70℃||Installation Size:||D220mmxM8|
|Working Temperature:||-20℃～60℃||Anti-wind Ability:||80m/s|
|steady light intensity:||20CD||flashing light intensity:||＞32.5CD|
|Weight:||7kg||Working mode:||Flashing/steady burning|
|Continuous working time in rainy day:||> 15days( work 12 hours a day)||Optically Controlled Ambient Brightness:||300LUX±100LUX|
Function & Features
1. Continuous working time in rainy day can reach more than 15 days (12 hours a day) .
2. Photocell can switch ON/OFF the light in rainy days or at night automatically.
3. Standardization of optical design, high photoelectric conversion efficiency.
4. Adopts high efficient solar chip, photoelectric conversion efficiency is over 19%.
5. The integration of the waterproof design, it can work in soaking in sea water,high protection grade IP67.
6. Adopts special customized LED chip, transfer efficiency and service life is higher than normal LED.
7. Circuit adopts advanced charging and discharging management system,prolong battery’s life effectively.
8. Provides strong corrosion resistance, lightning resistance,UV resistance, impact resistance.
9. No radio frequency (rf), no electromagnetic interference.
10. Steady working, low cost.
11. Internal use renewable solar dedicated lead-acid battery, service life can reach more than 3 years.
12. Can customize lithium iron phosphate battery to improve service life and working temperature range.
1. Please read the instruction carefully and then use the device correctly.
2. Solar powered marine lantern must be installed in a sunny place to keep it working continuously.
3. Please install this light on the Installation plane that perpendicular to light axis, installation plane should has mechanical strength.
4. If the aircraft obstruction lighting fails to work at the first using time, please place the device under sunlight to recharge power 12hours, it will work.
5. Please turn off the device and put it in a dry place, to ensure the life of the battery.please put it in a sunlight for 5day(s) to recharge power each 3 months if it needs to be stored for a long time.
6. If there any other problem please contact us.
Temporary military airport
Runway edge lights
Navigation beacon light
