20W Double Color AC110V AC220V Aircraft Obstruction Light

Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-MI/D
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
FAA Standard L-864 Type Double Color Aircraft Obstruction Light
Power Voltage AC 110V/220V,DC 12V/24/48V Power Supply Frequency 50HZ~60HZ
Average Power Consumption ≤20W Continuous Working Time 200ms At Night,100ms At Daytime
Light Intensity 2000cd-20000cd Horizontal Out-put 360°
High Light

20W aviation obstacle lights


AC110V Aircraft Obstruction Light


AC220V Aircraft Obstruction Light

Leave a Message
Product Description

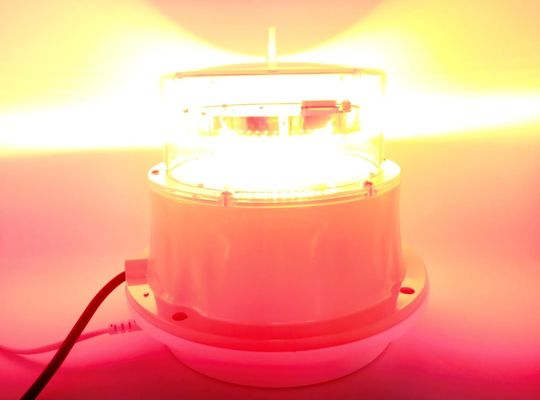

Medium Intensity Double Color Aviation Obstruction Light

FAA Standard:L-864
Power voltage:AC 110V/220V,DC 12V/24/48V
Power Supply Frequency:50HZ~60HZ
Average power consumption:≤20W
Flash rate:White light:Flashing 40times/min
Red light:Flashing 20-40times/min
Continuous working time:200ms at night,100ms at daytime
Light intensity:2000cd-20000cd
Horizontal Out-put:360°
Vertical Divergence:≥3°
Service Life of the Light Source:≥20years
Emitting Color:White and Red
Overall Size:255mm×255mm×210mm
Installation Size:¢234mm×M8
IP Protection:IP68
Optically Controlled Ambient Brightness:50/100Lux
Ambient Temperature:-40℃~70℃
Net Weight:4.8kg
Anti-Wind Ability:80m/s

1. Full sealed structure base, casting by high intensity aviation aluminum alloy.
2. Special LED chips, with high brightness, low power consumption and long life.
3. PC material cover, provides strong corrosion resistance, UV resistance, impact resistance.
4. Its lightning protection ability and control circuit with anti surge protective device that can apply to poor working environment.
5. A variety of work modes can be customized according to customer’s requirements.
6. Built-in photocell can switch ON/OFF the light at dawn or at dusk (optional).

Attention / Usage Tips
1. Check whether the supply voltage does comply with the rated voltage of device.
2. Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
3. Afterfinished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
4. Non-professional workers cannot do the device maintenance, in order not to expand the error and be hurt.

High Mast lamp
Telecom towers
High-rise Buildings

Dimension drawing

20W Double Color AC110V AC220V Aircraft Obstruction Light 0
