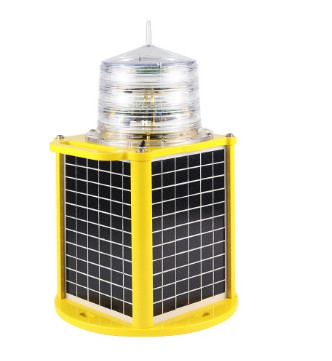

15W Remote Monitoring IP68 6NM Solar Powered Marine Lights

  • 15W Remote Monitoring IP68 6NM Solar Powered Marine Lights
  • 15W Remote Monitoring IP68 6NM Solar Powered Marine Lights
  • 15W Remote Monitoring IP68 6NM Solar Powered Marine Lights
  • 15W Remote Monitoring IP68 6NM Solar Powered Marine Lights
  • 15W Remote Monitoring IP68 6NM Solar Powered Marine Lights
  • 15W Remote Monitoring IP68 6NM Solar Powered Marine Lights
Place of Origin Guangdong,China
Brand Name Green Source
Certification ISO/SGS/CE/RoHS/CB/IEC
Model Number GS-LS/SJ
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton package
Delivery Time 3-10 days
Payment Terms TT, Paypal, Visa
Supply Ability 1000pcs/week
Product Details
Solar Panel Service Life ＞30 Years Horizontal Out-put 360°
Vertical Divergence ＞8° Battery Type Lead Acid Battery Lithium Iron Phosphate Battery
Solar Panel Power 6W X 4pcs Optional Emitting Color Red, Yellow, Green, Blue, White
LED Service Life ＞100000 Hours Type Remote Monitoring IP68 6NM Solar Powered Marine Lights
High Light

IP68 solar powered marine lights

,

15W solar powered marine lights

,

6NM solar powered marine lights
Leave a Message
Product Description

Remote Monitoring LED Solar Powered Marine Lantern



Specification

Name Parameter Name Parameter
Type GS-LS/SJ LED Service Life ＞100000 hours
Power Supply A grade high efficiency solar panel Optional Emitting Color Red, yellow, green, blue, white
Solar panel voltage 16.5V Solar panel power 6W x 4pcs
Battery Capacity Lead acid 12V14AH
Lithium Iron phosphate 12.8V40AH		 Battery Type Lead Acid Battery
Lithium Iron Phosphate Battery
Power Consumption ≤15W Vertical Divergence ＞8°
Visible Range 1-6NM(s) Horizontal Out-put 360°
Battery service life 3~5 years Solar panel service life ＞30 years
Light Intensity Compliant with IALA Overall Size ￠260×420mm
Light Source LED Installation Size ￠220 mm x M10
Working temperature -55℃~85℃ Anti-wind ability 80m/s
Storage Temperature -55℃~85℃ Working mode 350 flash pattern optional
Weight 7.8kg Sun Switch Illuminance Threshold 300LUX±100LUX
Continuous Light-emitting time ＞20days (12 hours a day) IP standard IP68


Function & Features

  1. Continuous working time in rainy day can reach more than 20 days. (12 hours a day)
  2. Built-in GPS timing synchronization module.
  3. The infrared remote control wirelessly adjusts light characteristics.
  4. With RS232／485 port, can be connected to computer.
  5. Built-in 350 flash characteristic encoders, could be adjusted manually or by pressing keys.
  6. Built-in light intensity adjustment function
  7. Photocell can switch ON/OFF the light in rainy days or at night automatically.
  8. With complete remote monitoring function, it can monitor charging voltage, charging current, working status, fault alarm, working current, working voltage, battery temperature and other information.
  9. Optional smart phone APP control and monitoring, computer control and monitoring.
  10. Standardization of optical design, high photoelectric conversion efficiency.
  11. Adopting high-efficiency solar panel, conversion efficiency is up to 23%.
  12. Integrated waterproof design, can be immersed in sea water, reach IP68.
  13. Using special Custom LED chip, the conversion efficiency and service life are higher than ordinary LED.
  14. The circuit adopts advanced charge and discharge management system, which effectively prolongs the battery life.
  15. It is resistant to impact, lightning protection, light fastness, resist snow and rain, and can withstand severe weather such as typhoons and hail.
  16. The replaceable solar battery is used inside, which reduces the maintenance cost and maintenance difficulty for users.
  17. Adopting marine-grade special plastic materials, especially suitable for places with harsh and corrosive environments, such as offshore, rivers, chemical plants, airports and other places, with service life of up to 30 years.
  18. Bird spike against bird drop.
  19. No radio frequency (RF), no electromagnetic interference.
  20. Stable work and low cost.

Usage notice
1.Please read the instruction carefully and then use the device correctly.
2.Solar powered Aviation obstruction light must be installed in a sunny place to keep it working continuously.
3.Please install this light on the Installation plane that perpendicular to light axis, installation plane should has mechanical strength.
4.If the device fails to work at the first using time, please place the device under sunlight to recharge power 12hours, it will work.
5.Please turn off the device and put it in a sunlight for 5day(s) to recharge power each 3 months if it needs to be stored for a long time.
6.If there any other problem please contact us.

Application

Sea lanes
Rivers
Lakes
Aquaculture areas,
Buildings
Bridges
Iron towers
Communication towers
Chimneys
Airport runways
Helipads
Traffic barriers
Tower cranes

Dimension drawing

15W Remote Monitoring IP68 6NM Solar Powered Marine Lights 0
